Case study · San Bernardino, CA

Static Pressure Test on a San Bernardino Home with Hidden Water Damage

A San Bernardino homeowner had rust colored staining at a bathroom door casing and laminate flooring starting to lift at the threshold, with no visible source. Before cutting into anything, we isolated the plumbing system and ran a static pressure test from an outside connection, watching the gauge over a timed hold to learn whether the pressurized supply side was losing water. Testing first means the repair that follows is aimed at a confirmed cause, not a guess.

Call (714) 643-7722

Location: San Bernardino, CA
Service: Leak detection, static pressure test
Symptom: Staining and lifting floors at a bathroom threshold
Approach: Test and document before opening walls

What the homeowner was facing

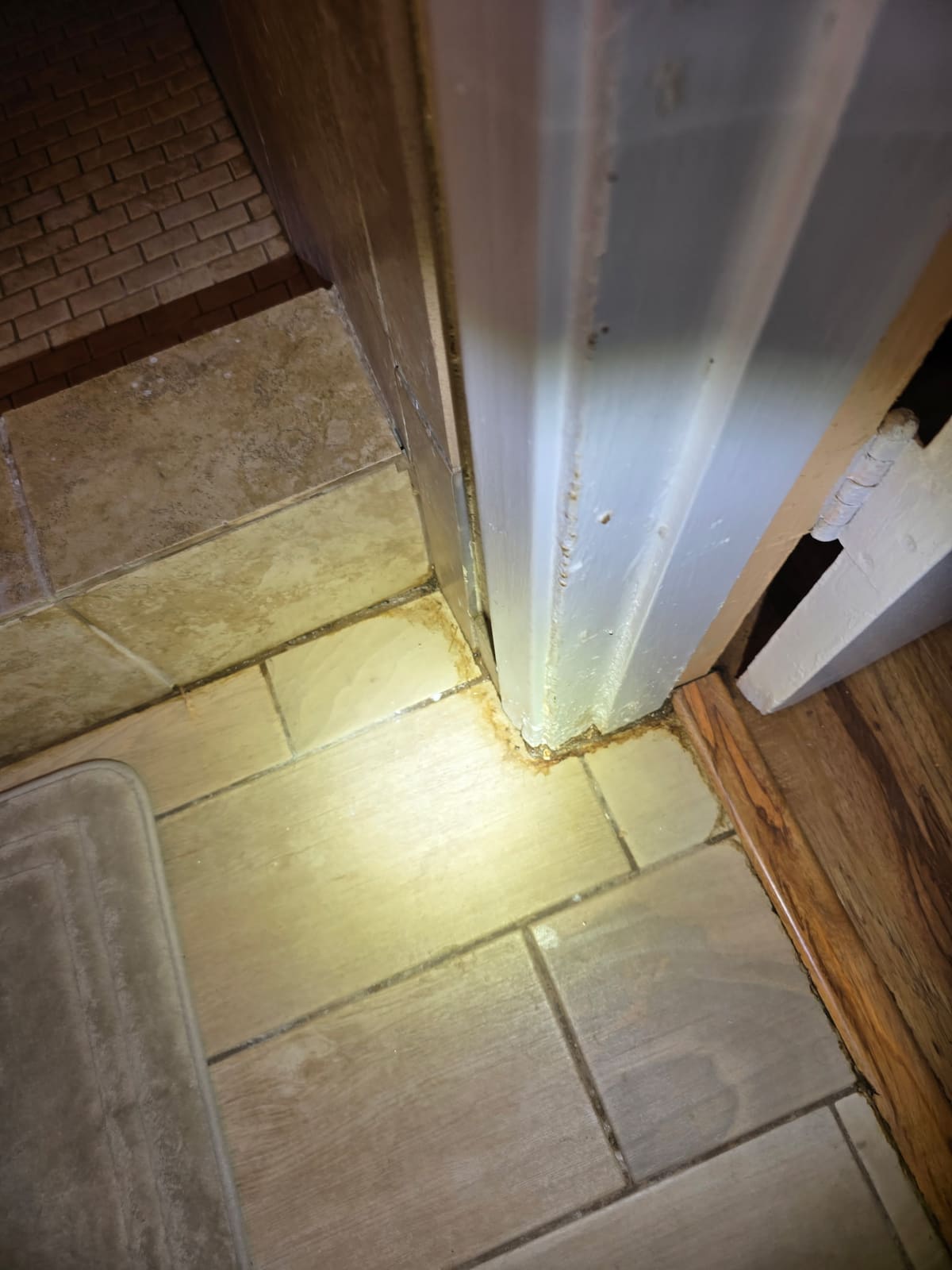

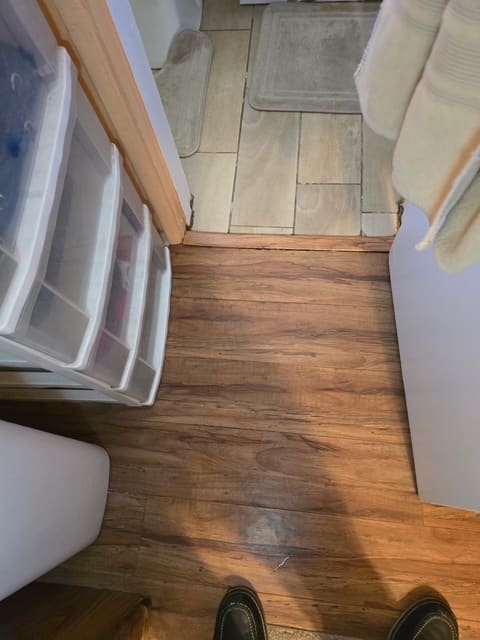

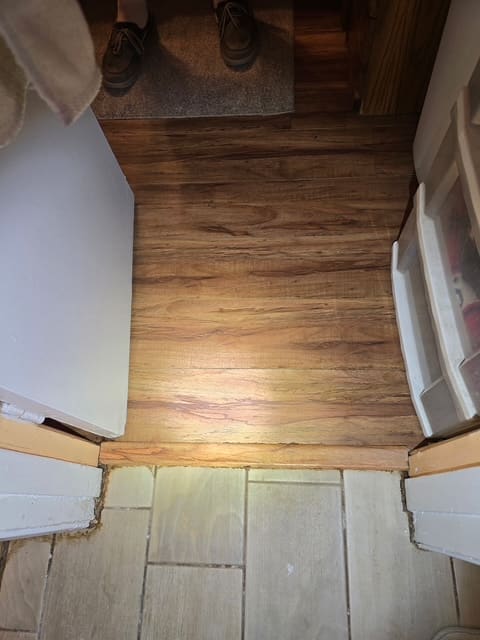

Water was showing up where it should not be. The bathroom door casing was stained at its base, grout lines were darkening, and the laminate in the hallway had begun to swell at the threshold. Damage like this can come from a supply leak, a drain leak, or a failed seal, and each one calls for a completely different repair.

Why test before cutting

A static pressure test settles the first question fast: is the pressurized side of the system losing water? We isolate the system, connect a gauge to an outside hose connection, and watch the needle over a timed hold. A supply system that holds steady points the investigation at drains and seals. A needle that falls says the pressurized lines are leaking somewhere.

The test

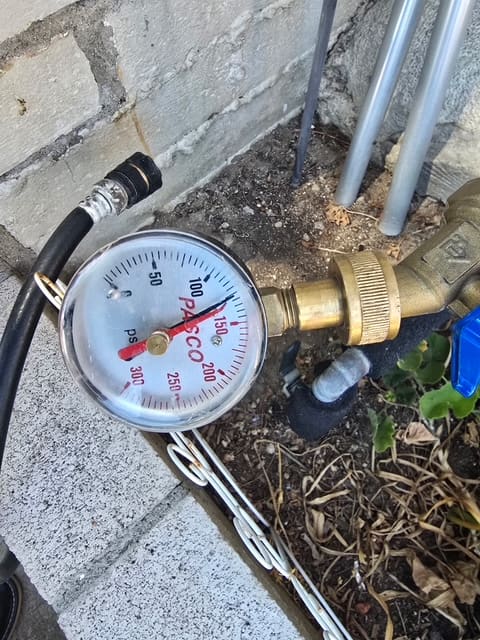

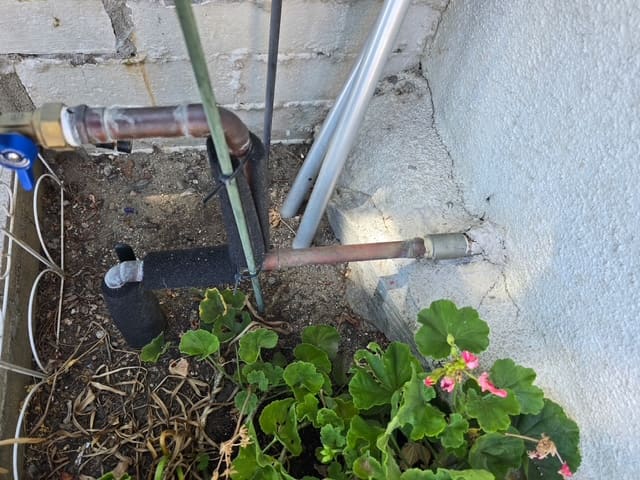

The gauge went on at the hose bib, the system was isolated, and readings were documented over the hold. It is not a dramatic tool, but it answers a question that would otherwise cost drywall and flooring to answer.

The result

The homeowner got a documented answer about their system before any demolition, and the repair conversation started from evidence. That is the order of operations we run on every hidden leak: prove where the water is coming from, then open exactly one thing.

Job photos
